D-Link-504

Full duplex for Fast Ethernet LAN
IEEE 802.3x Flow Control for full duplex (LAN)
Virtual Private Networking (VPN) pass-through
Layer 2 Tunnelling Protocol (L2TP)
Point-to-Point Tunnelling Protocol (PPTP)
Front-panel diagnostic LEDs
External AC power adapter
Desktop size
EMI: FCC Class B, CE Class B, C-Tick, BSMI Class B
Safety: UL/CSA
4 x network node - Ethernet 10Base-T/100Base-TX - RJ-45
ADSL - RJ-11

Router Basics

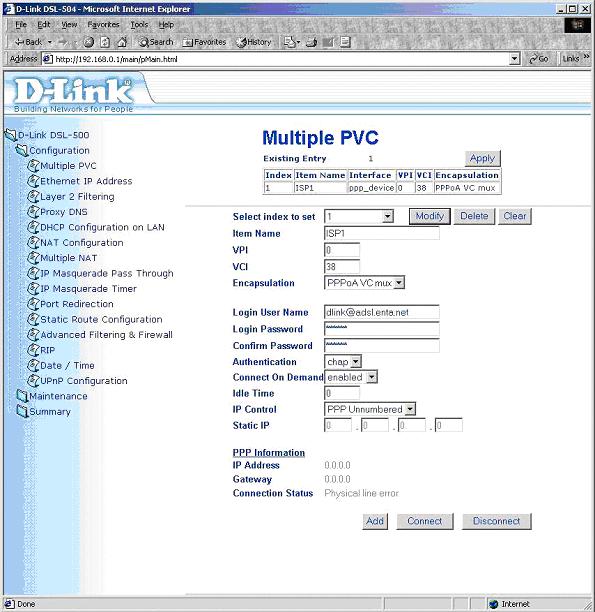

This router is web bassed so type in 192.168.0.1 into a browser address bar. After changing anything "modify" then "apply" then when the router is updated press "connect".

D-Link HomePage

http://www.dlink.co.uk/1815.htm

Want To Buy One

Cost is Ł84.39 inc VAT

PDF Manuals

ftp://ftp.dlink.co.uk/pub/broadband/dsl-504%20rev%20a/

Service Issues

If customers have slow pages on some sites and not loading and time outs then the firmware needs to be upgraded. The upgrade firmware is the Zip file that can be found at this location:

ftp://ftp.dlink.co.uk/pub/broadband/dsl-504%20rev%20b/

Upgrade Instructions

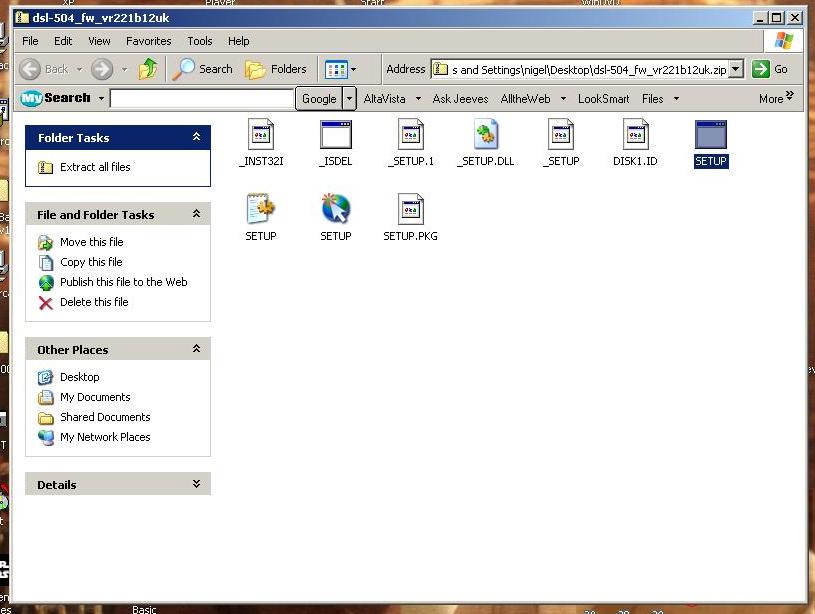

The download above will be a aip files and when extracted opens and looks like the screen belowe. Click on the setup and it will instal the firmware that then needs to be uploaded to the router. For help and the screenshots of the firmware upgrade process Click Here.
